ESAB Rogue EMP 210 Pro Multi-Process Welding System

SKU: 700301092 Category:
Brand:ESAB
£1,592.36 (£1,326.97 ex VAT)
x

Product Description

ESAB Rogue EMP 210 Pro Multi-Process Welding System (700301092)

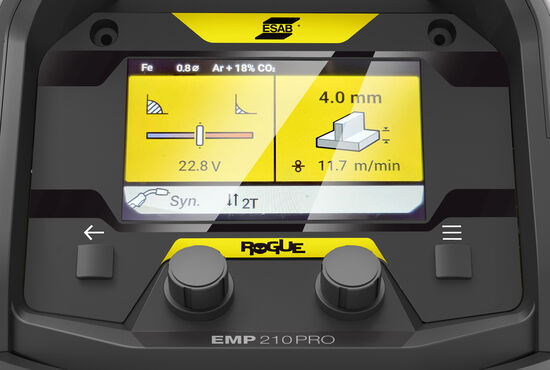

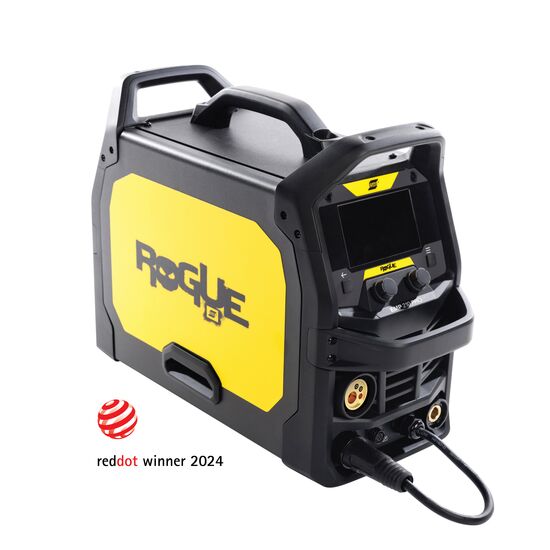

ESAB Rogue EMP 210 PRO is an inverter-based multi-process welding system designed to address all your welding project needs, from light fabrication to repair and maintenance. The system features industrial-grade arc performance and full featured controls that allow the welder to fine tune arc characteristics based on the material they are welding.

With a weight of only 16.7 kg, 230 V single-phase input and compatibility with 10 kVA generators, this system provides maximum flexibility and portability, both in the shop and in the field.

Price Match Promise:
In the unlikely event that you have found this product cheaper elsewhere, please call AOne Tools on 01484 727286 to discuss price matching.
NB: Please have relevant product and supplier information to hand.

Delivery includes:
210 A Multi Process Power Source with Mains Cable 16a Plug 3M
MXL 201 Mig Torch 3M
Return Cable Kit OKC 35-50 16mm2 3M
Electrode Holder Handy 200 A Heavy Duty 50mm OKC 3M
Gas Hose with Quick Connect/open 4.5M
ESAB OK AristoRod 12.50 0.8mm 1KG
ESAB GoldRox Electrode 2.5 x 350mm 1KG
Feed Rolls 0.6/0.8mm V Fitted
0.8/09mm VK
Safety Instruction

→ Instruction Manual Download
⇒ Factsheet Download

Input Voltage 230 VAC ±10 %, 1 Φ, 50/60 Hz
MIG (GMAW) Welding Output 210 A24.5 V @ 30 % Duty Cycle
136 A20.8 V @ 60 % Duty Cycle
105 A19.2 V @ 100 % Duty Cycle
MMA (SMAW) Welding Output 180 A27.2 V @ 30 % Duty Cycle
116 A24.7 V @ 60 % Duty Cycle
90 A23.6 V @ 100 % Duty Cycle
TIG (GTAW) Welding Output 210 A18.0 V @ 30 % Duty Cycle
136 A15.4 V @ 60 % Duty Cycle
105 A14.2 V @ 100 % Duty Cycle
Current Range 30-210 A
Voltage Range 12-26 V
Wire Feeder Specifications 2.0-16.5 m/min
Open Circuit Voltage 78 VDC
Wire Diameter
Aluminium
Stainless Steel
Cored Wire
Mild Steel		 0.6-1.0 mm
0.6-1.0 mm
0.6-1.0 mm
0.6-1.0 mm
Max Spool Diameter 100 & 200 mm
Power Factor at Maximum Current 0.99
Efficiency at Maximum Current >82 %
Energy Save Mode 50 W
Operating Temp -10 – +40 °C
Enclosure Class IP23S
Certification CE
Dimensions, L x W x H 590 x 220 x 385 mm
Weight 16.7 kg
Setting Range 15.5-24.5 V (30-210 A)
20.4-27.2 V (10-180 A)
10.4-18.4 V (10-210 A)
