ESAB Rebel EMP 250ic AC/DC Multi-Process Welding System

SKU: 700300998 Category:
Brand:ESAB
£4,882.88 (£4,069.07 ex VAT)
x

Product Description

ESAB Rebel EMP 250ic AC/DC Multi-Process Welding System (700300998)

We made the impossible possible with the first-ever portable, all-process machine, complete with MIG, Flux-Cored, MMA, DC TIG, and now AC TIG capabilities, which means – yes – it TIG welds aluminium. It is a TRUE all-in-one welding system that delivers best-in-class performance in each process in the most portable, durable, go anywhere, weld anything industrial package on the market today.

Price Match Promise:
In the unlikely event that you have found this product cheaper elsewhere, please call AOne Tools on 01484 727286 to discuss price matching.
NB: Please have relevant product and supplier information to hand.

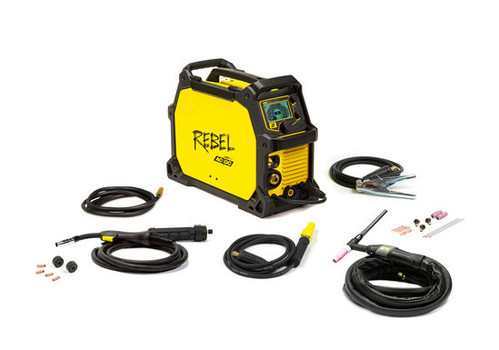

Delivery includes:
Power Source with 3M Mains Cable and Plug
MXL 201 Mig Torch 3M
SR-B 26 Tig Torch W. Accessories (3 Collet 1.6-3.2mm 3 Collet body 1.6-3.2mm 1 long back cap 3 ceramic nozzles and 3 gold tungstens 1.6-3.2mm)
Electrode holder return cable and clamp 3m
Gas hose with quick connector 4.5m
Drive rolls for 0.6 0.8 and 1.0mm wire guide tubes
0.6-1.2 thickness gauge tool

→ Instruction Manual Download
⇒ Factsheet Download

Input Voltage 120/230 VAC ±10 %, 1 Φ, 50/60 Hz
Max Output
GMAW (MIG/MAG) 120 V
GMAW (MIG/MAG) 230 V
GTAW-AC (TIG-AC) 120 V
GTAW-DC (TIG-DC) 120 V
GTAW-DC (TIG-DC) 230 V
SMAW/MMA (Stick) 120 V
SMAW/MMA (Stick) 230 V		 130 A205 A / 18.2 V (GTAW-DC)
130 A130 A130 A235 A / 26.2 V (GMAW)
180 A / 27.2 V (SMAW/MMA)
MIG (GMAW/FCAW) Welding Output 205 A24.3 V @ 25 % Duty Cycle
150 A21.5 V @ 40 % Duty Cycle
125 A20.3 V @ 60 % Duty Cycle
110 A19.5 V @ 100 % Duty Cycle
MMA (SMAW) Welding Output 170 A26.8 V @ 25 % Duty Cycle
125 A25 V @ 60 % Duty Cycle
100 A24 V @ 100 % Duty Cycle
TIG AC/DC (GTAW) Welding Output 205 A18.2 V @ 25 % Duty Cycle
125 A15 V @ 60 % Duty Cycle
110 A14.4 V @ 100 % Duty Cycle
AC Balance 60-90 %
Current Range 5-235 A
Voltage Range 12-26 V
Wire Feeder Specifications 2.0-12.1 m/min
Open Circuit Voltage 68 V
Power Factor at Maximum Current 0.98
Efficiency at Maximum Current 83 %
rated kVA 4.98 kVA
Recommended Generator >7 kVA
Enclosure Class IP23S
Certification CE
Dimensions, L x W x H
Lead Length		 1.8 mm
584 x 229 x 406 mm
Weight 25.5 kg
Setting Range 5-205 A
10-130 A
20.6-27.2 V (16-180 A)
14.5-26.0 V (5-130 A)
20.6-25.2 V (16-130 A)
10-205 A
14.5-20.5 V (5-205 A)
5-130 A
