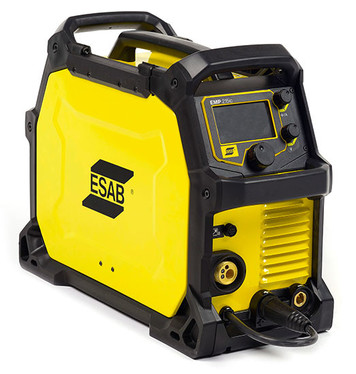

ESAB Rebel EM 215ic CE Multi-Process Welding System

SKU: 700300985 Category:
Brand:ESAB
£2,696.50 (£2,247.08 ex VAT)
x

Product Description

ESAB Rebel EM 215ic CE Multi-Process Welding System (700300985)

The Rebel™ Series Welding Machines offer 120/230V flexibility and some of the most innovative welding technology available.
A breakthrough design inspired by professional welders, the Rebel is a complete package to weld anything –mild steel, MIG aluminium, stainless steel –and go anywhere..

Price Match Promise:
In the unlikely event that you have found this product cheaper elsewhere, please call AOne Tools on 01484 727286 to discuss price matching.
NB: Please have relevant product and supplier information to hand.

Delivery includes:
Rebel EMP 215ic comes ready to weld with ESAB MXL 200 Mig torch electrode and return cable kits 200mm spool OK Aristorod 12.50 08mm wire 4.5m gas hose with quick connector contact tips and drive rolls for 0.6-1.0mm wire

→ Instruction Manual Download
⇒ Factsheet Download

Input Voltage 120/230 V , 1 Φ, 50/60 Hz
Max Output 240 A
MIG (GMAW) Welding Output 130 A20.5 V (120) @ 20 % Duty Cycle
205 A24.3 V (230) @ 25 % Duty Cycle
MMA (SMAW) Welding Output 90 A23.6 V (120) @ 40 % Duty Cycle
180 A27.2 V (230) @ 25 % Duty Cycle
TIG (GTAW) Welding Output 130 A15.2 V (120) @ 40 % Duty Cycle
180 A17.2 V (230) @ 30 % Duty Cycle
Current Range
230V
120V		 5 – 240 A
5 – 150 A
Voltage Range 90-270 V
10-26 V
Wire Feeder Specifications 1.5-12.1 m/min
Open Circuit Voltage 68 V
Use With Welding Material 9.5 mm (3/8 in.)
Wire Diameter
Flux Cored
Mild Steel
Stainless Steel
Aluminium		 0.8-1.2 mm
0.6-1.0 mm
0.8-1.0 mm
0.8-1.2 mm
Max Spool Diameter 100 & 200 mm
Supply Plug 230 V, Schuko 16A plug
MCableX 3 m 3×2,5 mm² H07RN-F
rated kVA 7 kVA (230 V)
4.5 kVA (120 V)
Enclosure Class IP23S
Certification & Standards CSA: E60974-1-00
CE: IEC/EN 60974-1, 5, 7, 10, 12 & 13. RoHS
Dimensions, L x W x H 584 x 229 x 406 mm
Weight 20.6 kg
Setting Range 10.2-16 V (5-150 A)
20.6-24.4 V (16-110 A)
10.2-18 V (5-200 A)
14.75-25.5 V (15-230 A)
14.75-20.5 V (15-130 A)
20.6-27.4 V (16-185 A)
