Product Description

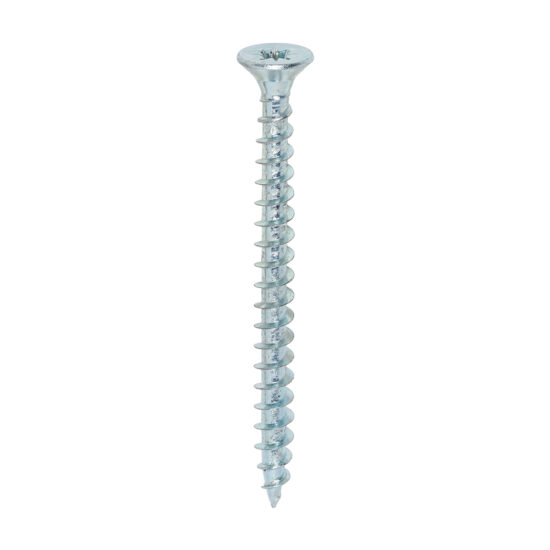

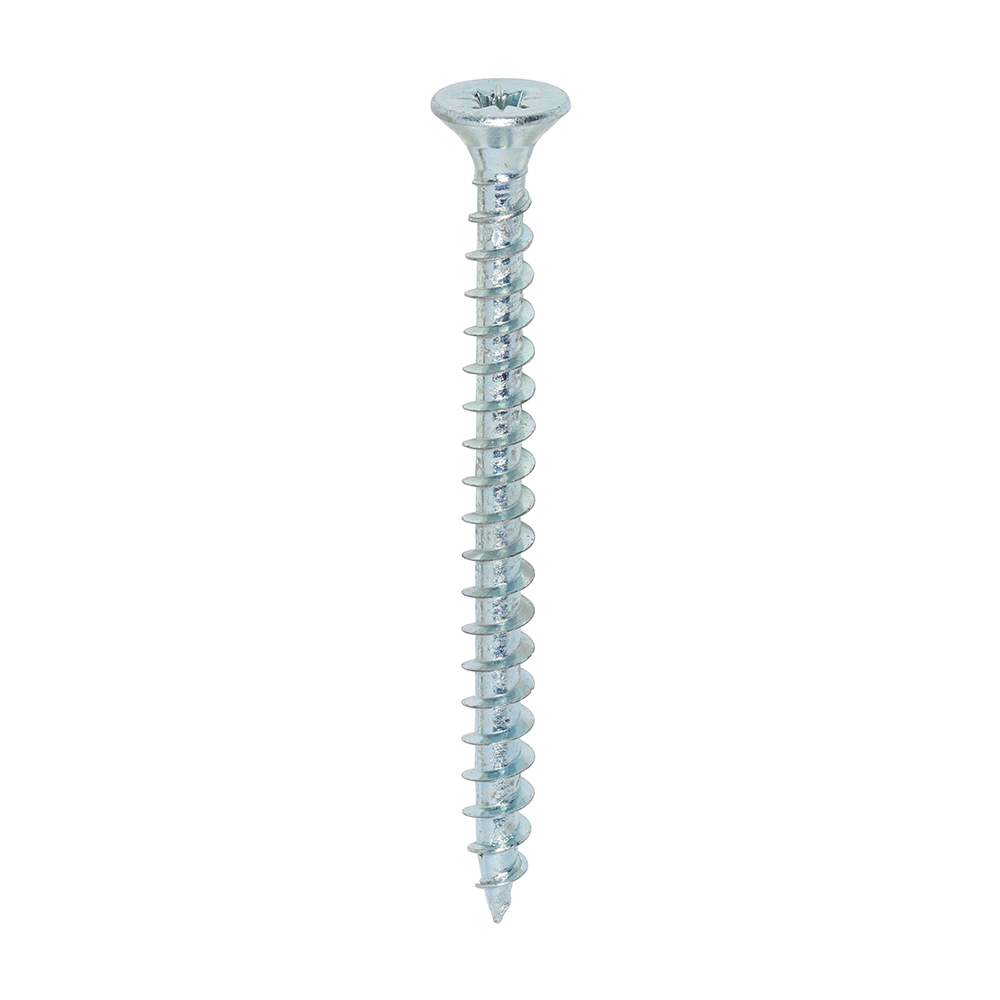

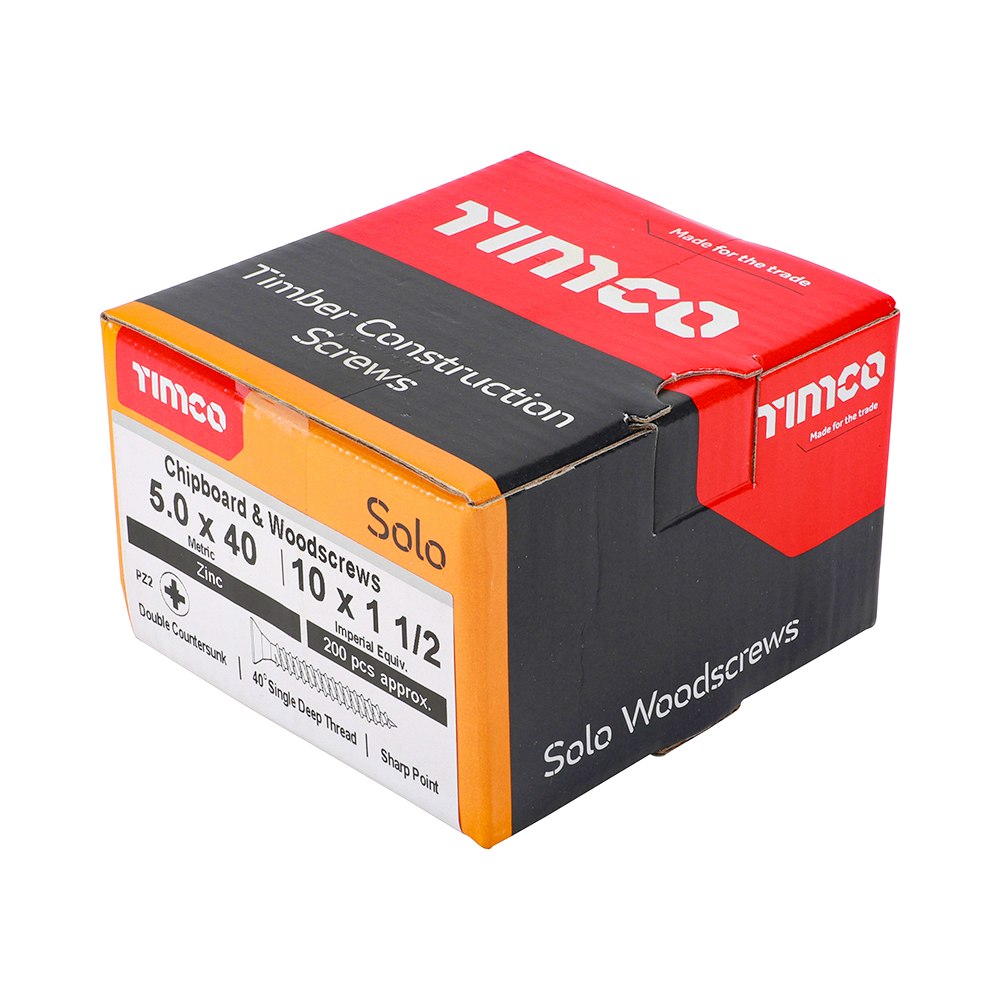

TimCo Solo Woodscrews, Pozi Countersunk 5.0x40mm (Box Of 200)
A single thread woodscrew mainly used in various types of timber and man-made boards or into masonry with the use of a plastic plug.
• Double countersunk reduces the likelihood of head shear and assists completion of countersinking
• Wax lubricated to enhance screw insertion time, extra driving torque and resistance to corrosion
• 40° deep single thread to provide a secure fixing with high pull-out resistance
• 25° sharp point and single lead for a fast start and improved thread acceptance
• All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Brand | TIMCO |
Carton Qty (packs) | 35 |
Corrosion Rating (1-5) | 1 – Clean, dry & low humidity environments |
Driver Bit Size | PZ2 |
Feature 1 | Double countersunk reduces the likelihood of head shear and assists completion of countersinking |
Feature 2 | Wax lubricated to enhance screw insertion time, extra driving torque and resistance to corrosion |
Feature 3 | 40° deep single thread to provide a secure fixing with high pull-out resistance |
Feature 4 | 25° sharp point and single lead for a fast start and improved thread acceptance |
Feature 5 | All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length |
Finish | Zinc |
Head Type | Double Countersunk |
Inner Thread Ø d1 (mm) | 3.1 |
L (mm) | 40 |
Lubrication | Wax |
Material | Carbon Steel |
MOQ | 1 |
MOQ Increment | 1 |
Pack Qty | 200 |
Pack Type | Box |
Point Type | 25° Sharp |
Recess Type | Pozi |
Size (mm) | 5.0 x 40 |
Substrates | Softwood, Chipboard, MDF, Masonry (with plug) |
Thread Coverage | Fully Threaded |
Thread L (mm) | 35 |
Thread Ø (mm) | 5 |
Thread Type | 40° Single Deep |
