Product Description

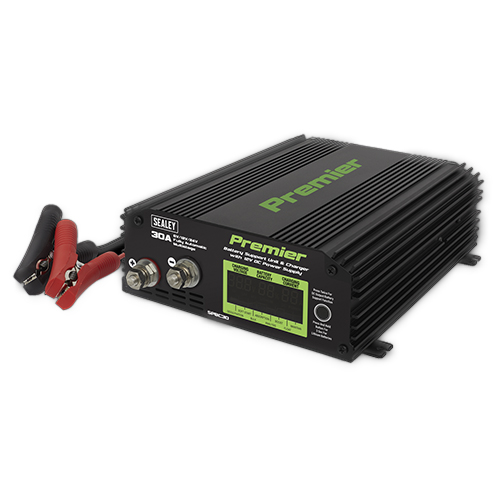

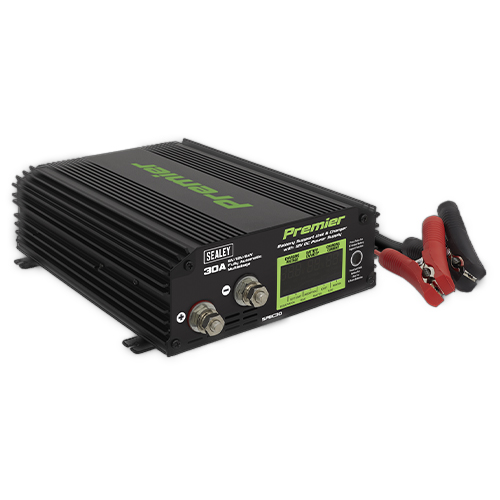

Sealey SPBC30 Battery Support Unit Charger & Maintainer 30A
• Fully automatic 7-stage battery charger/maintainer, designed for charging a variety of EFB and AGM (stop/start), GEL, lead acid and calcium batteries with auto chemistry selection. • Additional function to charge lithium batteries via selection button.
• Automatically selects and charges 6, 12, or 24V. • Zero volt battery charging, enabling recovery and charging of a completely discharged battery (providing any load removed from the rechargeable battery). • Old battery sulfation repair function.
• 13.5V DC power supply for battery support function providing support for the battery during prolonged electronic diagnostic checks. • Reverse polarity, short circuit, over temperature and overcharging protection. • Built-in cooling fan that only operates when required.

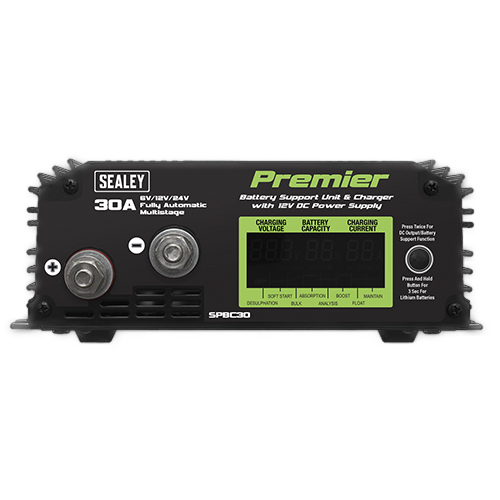

• Intuitive LED screen displays charging voltage, current, battery capacity percentage, and illuminated charging stages.
• Compact design with mounting brackets for permanent fitting. • 5 Year guarantee*.
Cable & Clamp Length: | 2m |
Nett Weight: | 2.8kg |
Supply: | 230V |
Output: | 6/12/24V |
Output Charge: | 30A @ 6/12V (15A @24V) |
Battery Range: | 60Ah – 300Ah |
Battery Support Mode: | 13.5V dc – 30A |
Cable Length: | 2m |
IP Rating: | IP20 |
Dimensions: | 210 x 76 x 225mm |
Op. Temperature Range: | -15°C – 50°C |
