Parweld 11100NPEM2 ESR 11 E6013 Electrode 3.25mm x 350mm 1kg Cardboard Box
3-5 Days Delivery
Product Description
Parweld 11100NPEM2 ESR 11 E6013 Electrode 3.25mm x 350mm 1kg Cardboard Box

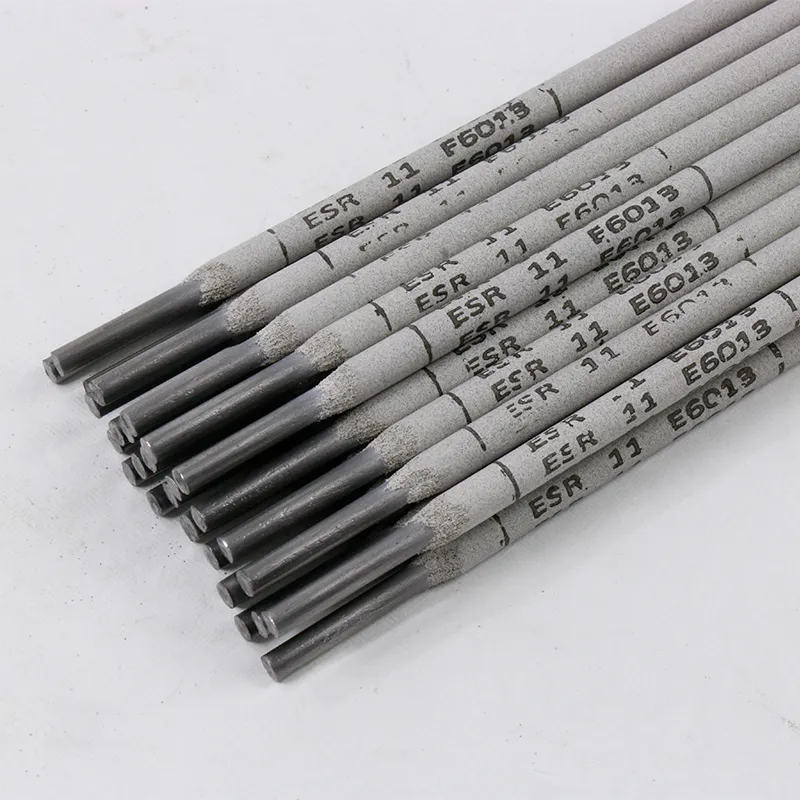

Magmaweld E6013 Electrodes, ESR 11
Magmaweld E6013 General Purpose Mild Steel Electrodes (ESR 11)
Especially suitable for welding in sheets thinner than 5 mm, galvanized sheets and tubes, primer painted, painted and slightly rusty steels and in production of tanks and boilers, tube installations. Very easily operated in positional welding, including vertically-down. Good gap-bridging. Smooth arc, well suited for tack-welding due to its easy arc striking and re-striking properties. Possible to use equally well both with AC and DC. Welds are smooth, slightly concave and blending into base metal without undercutting. Slag is self-releasing.
Approvals & Certificates Include:
BV
DB
CE
TSE
TUV
| Weight | N/A |
| Dimensions | 350 mm |
| ESR | 11 |
| Material | Mild Steel |
| Yield Strength | 480 N/mm² |
| Tensile Strength | 560 N/mm² |
| Elongation A5 | 26% |
| Current Type | AC/DC- |
| Charpy V-Notch Properties (J) | 0°C –> 55J |
| Chemical Composition(s) | C = 0.10 MAX, Mn = 0.45 MAX, Si = 0.70 MAX |
| Grade | E6013 |
| Package Material | TIN |
| Set Size | Single Box |
| Conforms To | AWS/ASME SFA 5.1 E6013, EN ISO 2560 A E 38 0 RC 11, TS EN ISO 2560 A E 38 0 RC 11 |
