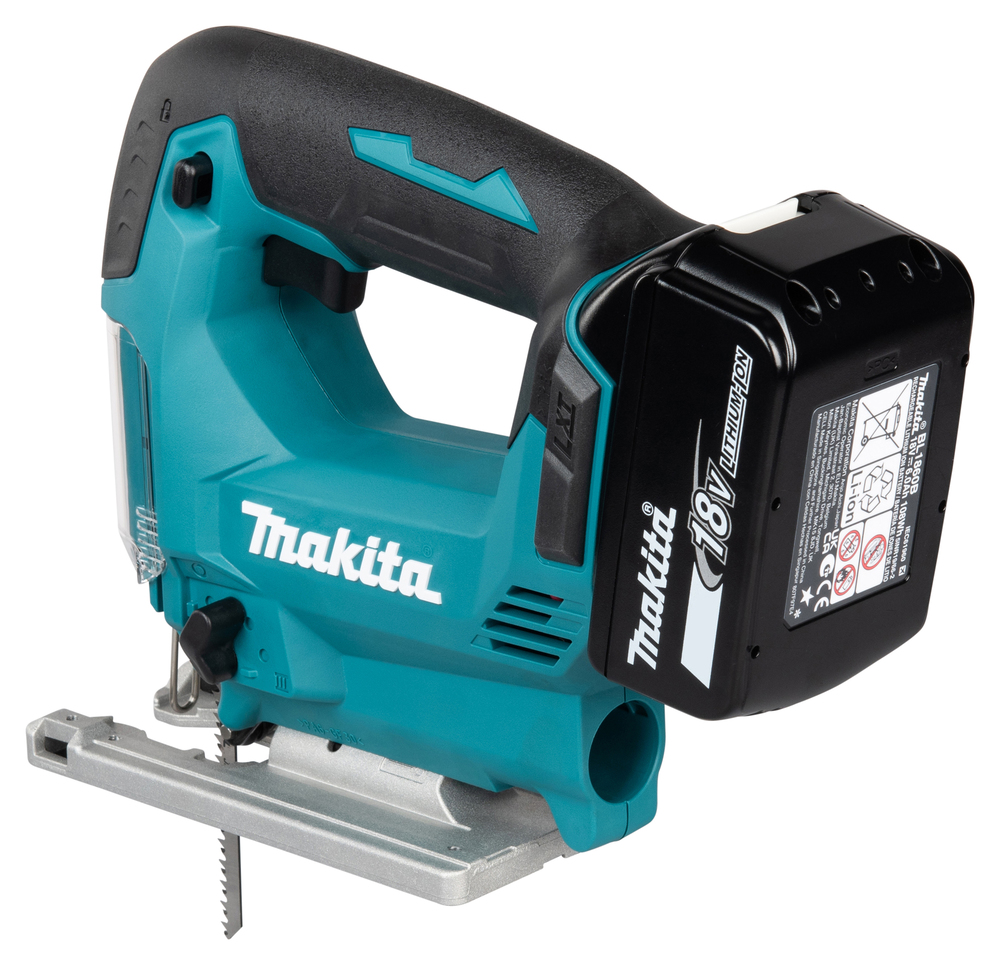

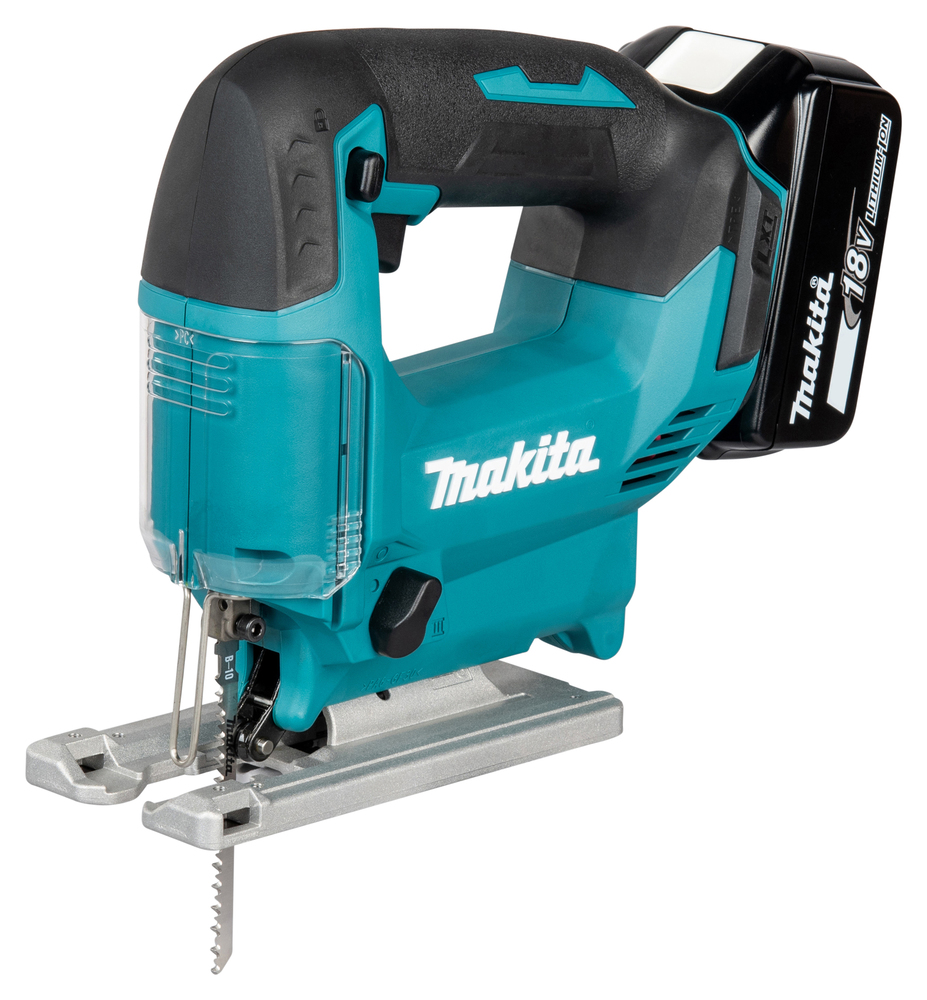

Makita DJV186z 18v LXT Jigsaw, Body Only
18V, 0 – 2 900 min⁻¹
Model DJV186 is a Jig Saw powered by an 18V LXT Li-Ion battery

Features and benefits: Stroke length 18 mm. Variable speed control by trigger. 3 orbital settings + Straight cutting
Compact and lightweight design
Variable speed control dial enables user to match the speed to the application for greater versatility
3 orbital settings
Slim design with rubberised grip for comfort
Tilting base for bevel cuts from 0° – 45°
Electric brake for maximum productivity and increased operator safety

Batteries & Charger not included, image is for illustration purposes only

Voltage LXT
Nominal Battery Voltage 18 V
Strokes per Minute (SPM) 0 – 2900 min⁻¹
Length of Stroke 18 mm
Max. Cutting Capacity in Wood (90°) 65 mm
Max. Cutting Capacity in Steel (90°) 6 mm
Capacity Aluminium 10 mm
Orbital Action
Tool weight with battery 1,9 – 2,2 kg
Product Dimensions (L x W x H): 257 x 81 x 196 mm
Max. Bevel Range (Left) 0 – 45 º
Product net weight 1,6 kg
Vibration Level, Cutting Boards 7,5 m/s²
Vibration Uncertainty (K Factor), Cutting Boards 1,5 m/s²
Vibration Level, Cutting Sheet Metal 4,2 m/s²
Vibration Uncertainty (K Factor), Cutting Sheet Metal 1,5 m/s²
Sound Power Level (LWA) 93 dB(A)
Sound Pressure Level (LpA) 85 dB(A)
Noise Uncertainty (K Factor) 3 dB(A)
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion) Li-ion
Max. Bevel Range (Right) 0 – 45 º
