The Z 5 Ec portable bandsaw is the innovative successor to the legendary Z 3. Owing to a new, high-output motor and magnesium die-cast components, its persuasive benefits includes reduced weight (13.6 kg / 30.2 lbs), enhanced performance, higher torque and excellent handling. Exclusive with ball bearing saw band guidance for excellent band running and thus for optimum cutting. Maximum 8 mm (5/16 in.) saw bands for optimum flexibility when curving and profiling purlins and rafters. The Z 5 Ec offers an impressive cutting depth of 305 mm (12 in.). The precision that typifies MAFELL portable bandsaw enables the Z 5 Ec to execute extremely clean and perfectly square cuts. The cooling air of the high-performance motor is utilized to blow away dust from the mark. As a consequence, chips are kept well away from your head and you maintain a clear view of the mark at all times.

With CUprex, the high-performance motor
Variable digital electronics
Combined brake/off switch
Ball-bearing blade guide
30° tilting blade side

Rip cuts and cross-cutting

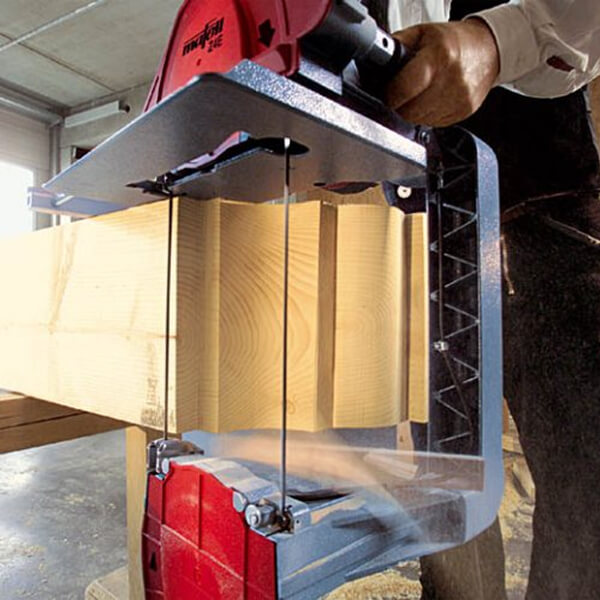

Curving and profiling
Birdsmouth cuts and lap joints
Compound miter cuts and angled birdsmouths (two-man operation)
Compatible materials include solid wood and laminated beams

1 Saw band, 8 mm (5/16 in.) wide, 4 teeth per inch, with front and rear cutting teeth
1 Saw band, 8 mm (5/16 in.) wide, 4 teeth per inch
1 Saw band, 6 mm (1/4 in.) wide, 4 teeth per inch
1 Handle for two-man operation; Ref. No. 203824

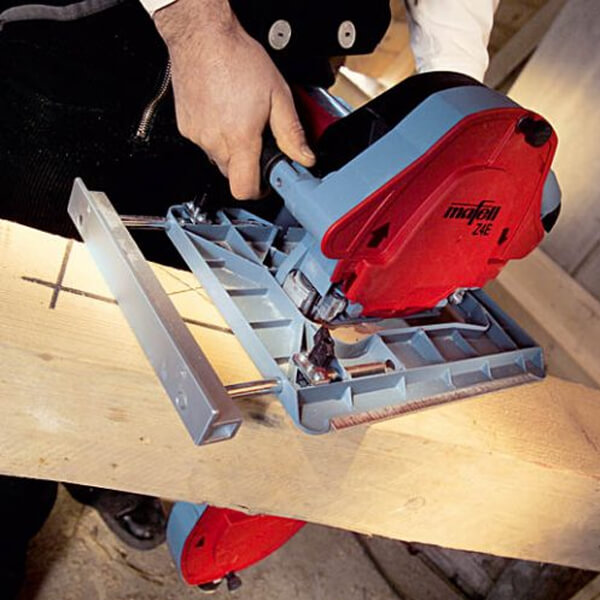

1 Parallel guide fence, Ref. No. 039386
1 Mains cable 10 m (32.8 ft)
