Lorch 111.7064.0 MicorStick 180 ControlPro For The Workshop

£843.60£703.00 Incl. VATExcl. VAT

3-5 Days Delivery

x

Product Description

Lorch 111.7064.0 MicorStick 180 ControlPro For The Workshop
Order no. 111.7064.0 (PG SA)

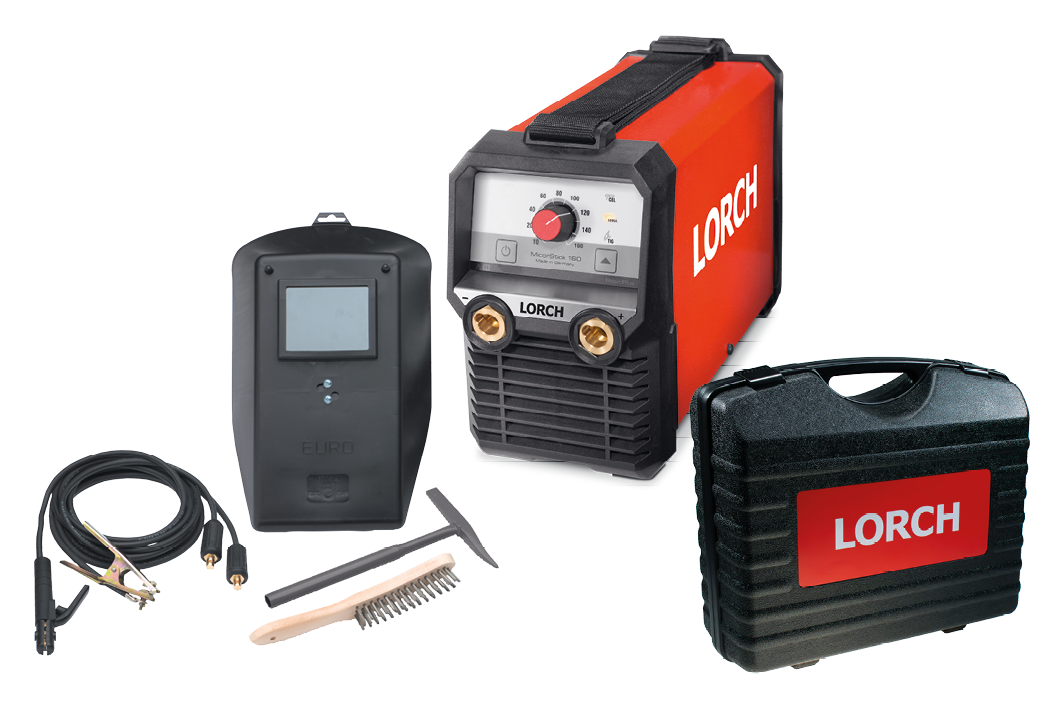

MicorStick 180 ControlPro AR, Accessories:
25 mm²: 13 mm plug, 3 m workpiece cable,
3 m electrode cable, welding shield, slag hammer, wire brush

A robust featherweight.
On average, welding equipment like this tends to fall off of workbenches or sills four times during its service life! Able to take falls from a height of 80 cm, the MicorStick 180 with its weight of only 6.2 kg can cope with this easily and will continue to give you reliable welding performance.

Long-distance champions.
Extension cords, low and fluctuating line voltage, generator operation: The MicorStick 180 can weld easily even using extension cables of up to 200 metres and will compensate for dropping voltage. It will not turn off before reaching a negative tolerance of 40%.

Safe and standard-compliant.
No compromises! The IP 23S, the S mark, and verified CE conformity in accordance with European standards as well as ongoing quality assurance in Germany promise the greatest safety in the workshop and at the customer’s site.

Long-term welding quality.
The MicorStick 180 puts an end to broken connectors, damaged insulation, kinked welding cables, and charred contacts with thick 25 mm² welding cables and large, industrial-grade, 13 mm Ø welding sockets to make a true difference, offer greater safety, and vastly improve welding quality.

Electrode welding
Welding range 115 V:[A] 10 – 140
Welding range 230 V:[A] 10 – 180
Voltage range:[V] 20.4 – 27.2
Weldable electrodes:[Ø in mm] 1.5 – 3.2
Electrode duty cycle
Duty cycle 100% (40°c):[A] 120
Duty cycle 60%:[A] 140
Duty cycle at max. current (40°c):[%] 25
TIG welding
Welding range 1~ 115 V:[A] 5 – 180
Welding range 1~ 230 V:[A] 5 – 200
Voltage range:[V] 10.2 – 18
TIG Duty cycle DC 115 V 230 V
Duty cycle DC 100% (40°c):[A] 130 140
Duty cycle DC 60% (40°c):[A] 150 160
Duty cycle DC at max. current (40°c):[%] 25 25
Process-independent data
Open circuit voltage:[V] 78 – 88
Open circuit voltage VRD:[V] 35 – 35
Mains 115 V 230 V
Mains voltage 1~ (50/60 Hz):[V] 115 230
Mains fuse 1~ (50/60 Hz):[A] 25 16
Positive mains tolerance 1~ (50/60 Hz):[%] 15 15
Negative mains tolerance 1~ (50/60 Hz):[%] 15 15
Mains plug
Mains plug: Schuko
Standards and approvals
Protection class: IP23S
Insulation class: F
Norm/Standard: EN 60974-01
Designation/Certification: CE,S
Cooling type
Cooling type: Gas-cooled
Dimensions length x width x height
Dimensions (LxWxH)[mm] 360 × 130 × 215
Weights
Weight:[kg] 6.2
