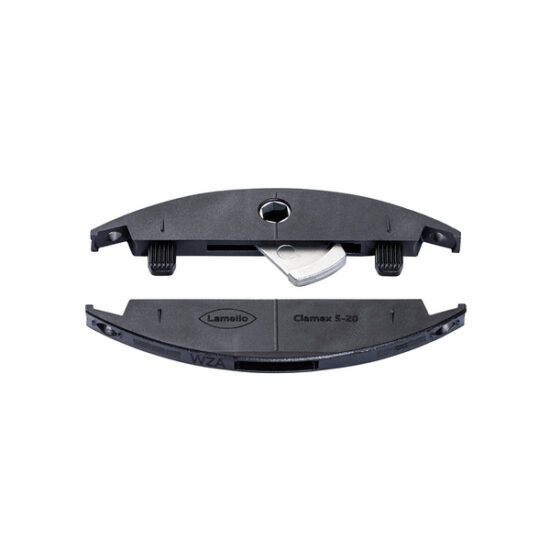

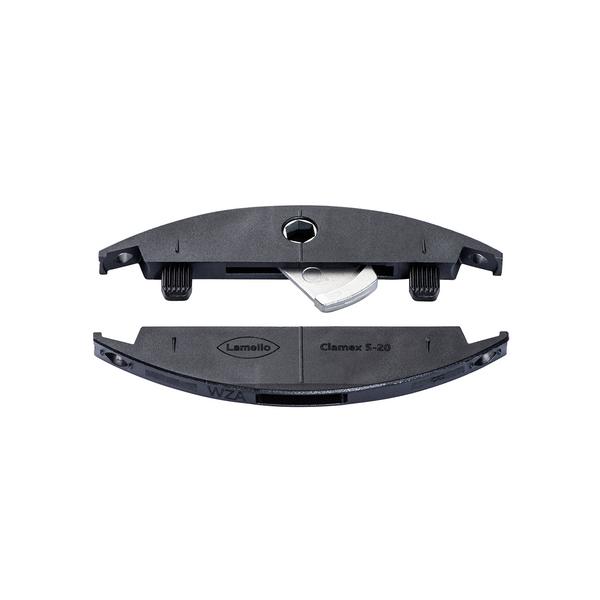

Lamello 145245 S-20 Connectors Including Screws – 300 Pairs

Clamex S-20 is a detachable connector for the Lamello system for material thicknesses from 16 mm and is fastened in the groove with screws.
The symmetric 4 mm grooves can be created with any biscuit joiner. Clamex S-20 is connected to the counterpart with a lever and has a lateral installation tolerance.

It requires no adhesive, enables aesthetic connections at all angles and is ideal for fixed or detachable connections.

Open the connection time and time again with the rotating lever
Use with any biscuit joiner
Narrow connector allows installation into the edge in materials from 8 mm

Size (mm): 59 × 12 × 3.9 mm
Cutter: Ø 100 × 4 × 22 mm
Material connector: Fiberglass reinforced plastic

Material lever: Zinc die cast
Installation tolerance: Long. ± 1 mm/radial ± 0 mm
Tensile strength (N)
MDF: 620 N

Tensile strength (N)
Particle board: 490 N
Tensile strength (N)
Beech: 620 N
