Jasic EVOLVE MIG 200P (Multi Process) Inverter

What is EVOLVE？
It is a new product series developed by JASIC that features full digital control welding machines with IoT technology and cloud service. Advanced DSP Processor Full Digital HMI High Precision Arc Control Cloud Service

Why EVOLVE?
Today’s welding challenges are complex and constantly changing, and a welding machine that can update its processes and functions on demand is JASIC’s response to those challenges.
This constantly EVOLVEing future-proof inverter fits the modern welding environment and survives its challenges.

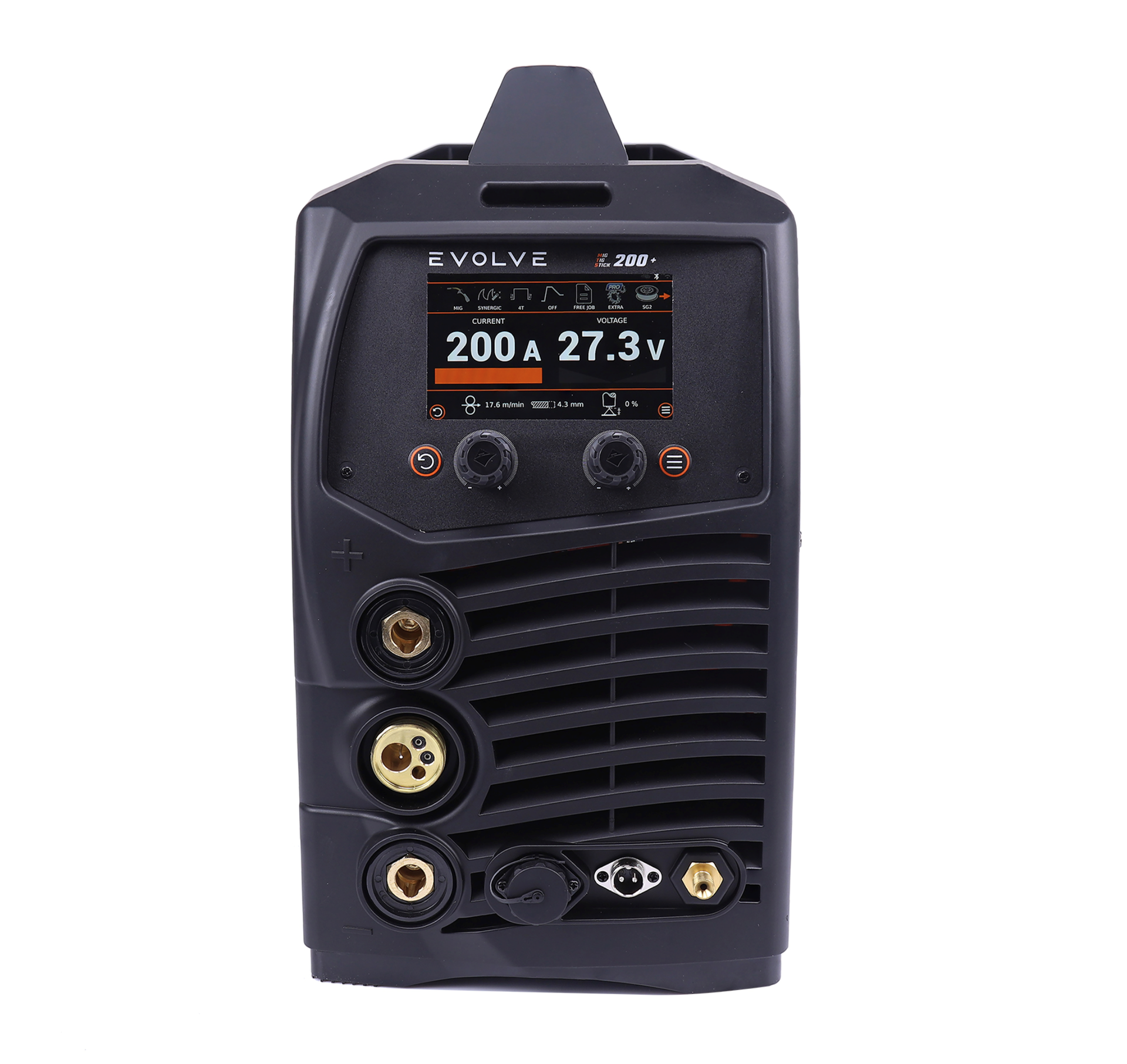

The EVOLVE 200+
Being the introductory model in the range, it brings in JASIC’s concept of advanced digital welding thanks to 4 main aspects of the machine:
The ARM Cortex-M4, with its floating-point unit (FPU), is ideal for precise pulse control due to its efficient signal processing.
It supports advanced welding algorithms, enhancing the EVOLVE200+’s overall weld quality.
Full Digital HMI (Human-Machine Interface)
EVOLVE’s digital interface provides a seamless, intuitive user experience, regardless of the welder’s distance from the power source.

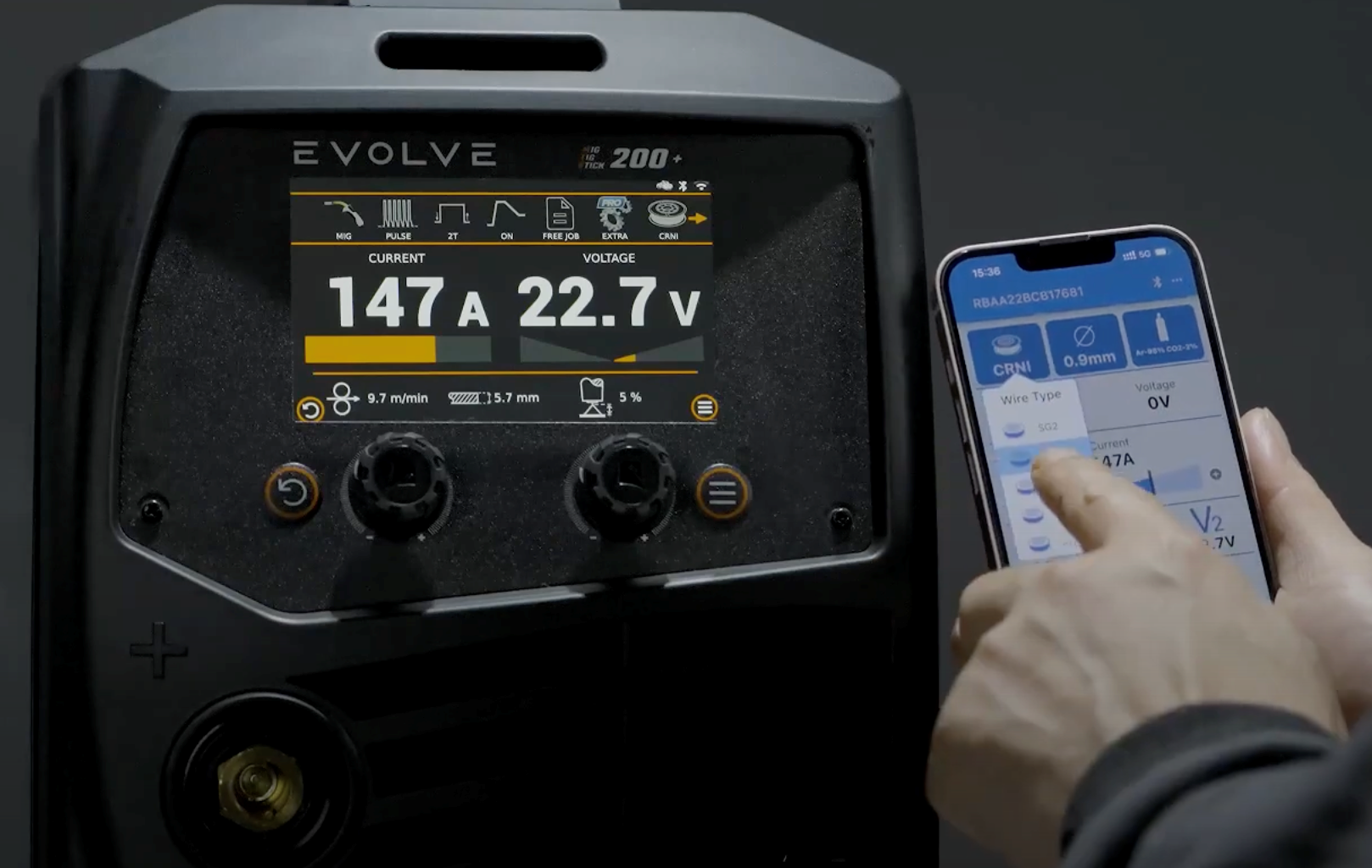

Mobile App
Capable of managing multiple machines
Wireless connection via Bluetooth or Wifi
Intuitive user interface
Comprehensive welding parameter configuration

Inverter Frequency Modulation
This feature boosts EVOLVE200+’s energy efficiency by adjusting its inverters’ switching frequency (26K-40K) based on output. High frequency for low current settings improves arc control, while low frequency for high current reduces power loss and heat.

Glick Function
The “trim” function allows users to adjust output current mid-weld during 4T MIG/TIG welding by pressing the torch trigger. This enables more precise heat control and greater flexibility in weld bead shaping.

Double Pulse MIG Welding
Double pulse MIG welding uses two current pulses per cycle. This stirs the weld pool more effectively than single pulse, resulting in finer grain structure, better weld bead quality, and reduced heat input.

JTECloud
This cloud service aims to provide comprehensive productivity boost by allowing users to capitalize on the power of welding data and IoT applications.

Professional Welding Cloud Service
Welding data documentation, statistics, and analysis
Cost calculation and analysis
Machine management and maintenance

• Single and double pulse synergic MIG
• High frequency/LIFT DC pulse TIG
• MMA
• 4 roll wire feeder
• User friendly graphical user interface
• Wi-Fi enabled firmware updates
• App control
• Digital control MIG torch
• 100+ Synergic programs
• 100 job memory storage
• 2T/4T/Spot trigger control
• IP23S
• On demand cooling
• Ideally suited for light industrial fabrication work
• Generator friendly *must have AVR
