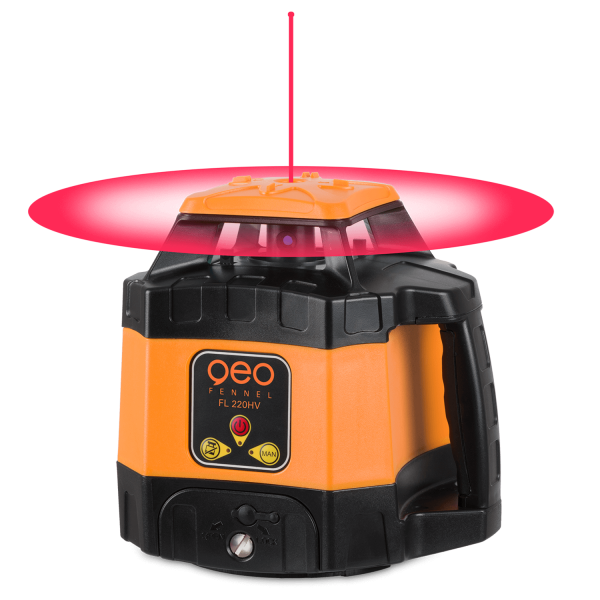

Geo Fennel Fully Automatic Self Levelling Horizontal & Vertical Red Rotary Laser Set
Out of stock
Product Description

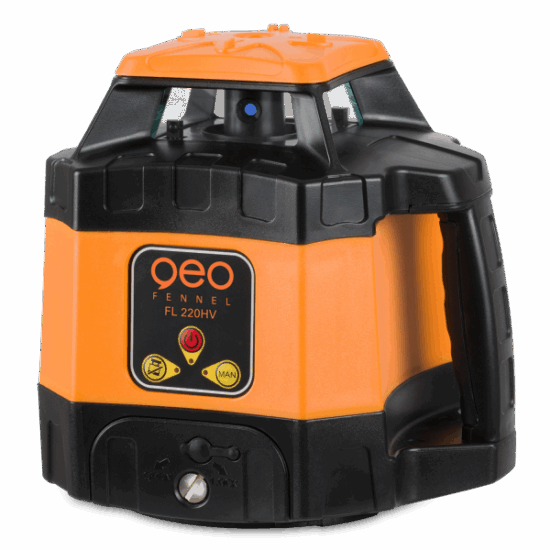

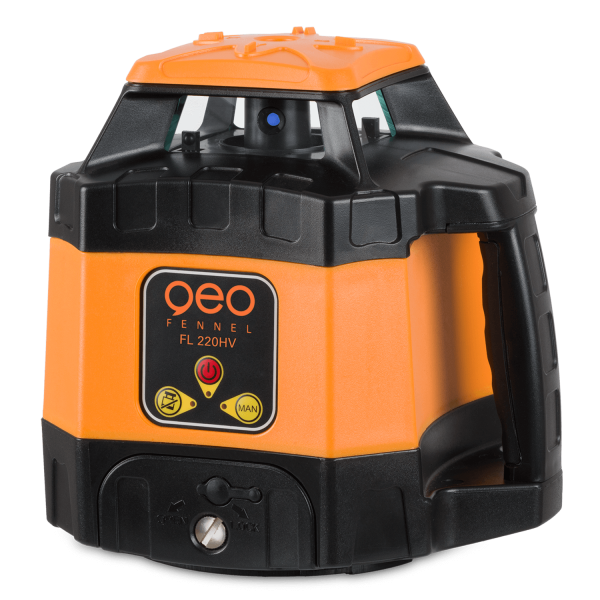

Geo Fennel Fully Automatic Self Levelling Horizontal & Vertical Red Rotary Laser Set
Product information “FL 220HV”

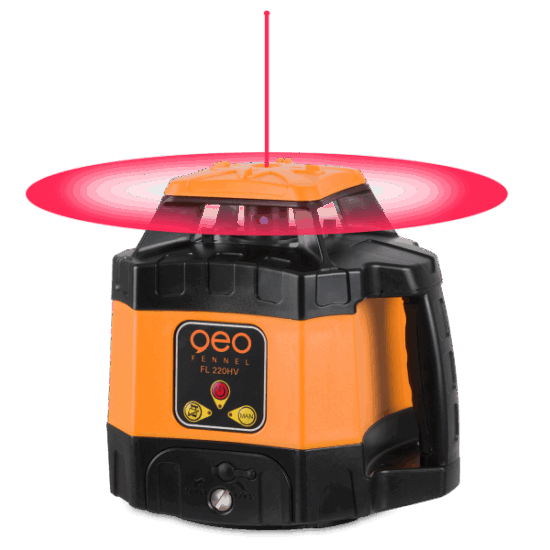

Fully automatic self-levelling horizontal and vertical laser
A multipurpose rotating laser for indoor and outdoor applications
3 buttons for user-fi endly functionallity
Just switch on and start.
Features
Working range up to 400m diameter
Dust / water protection IP 54

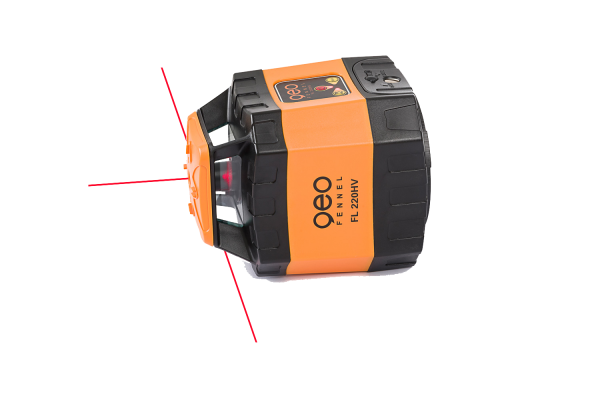

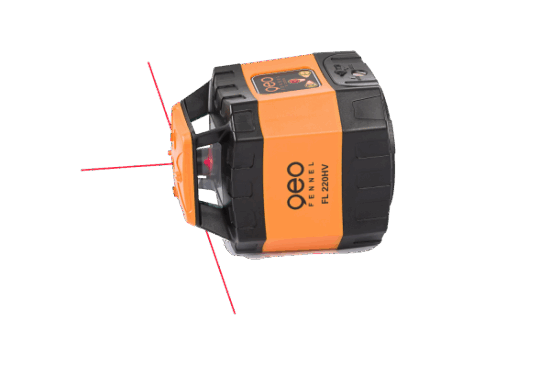

Permanent 90° plumb beam
Automatic TILT alarm function
Auto-shut-off when out of level
Manual mode

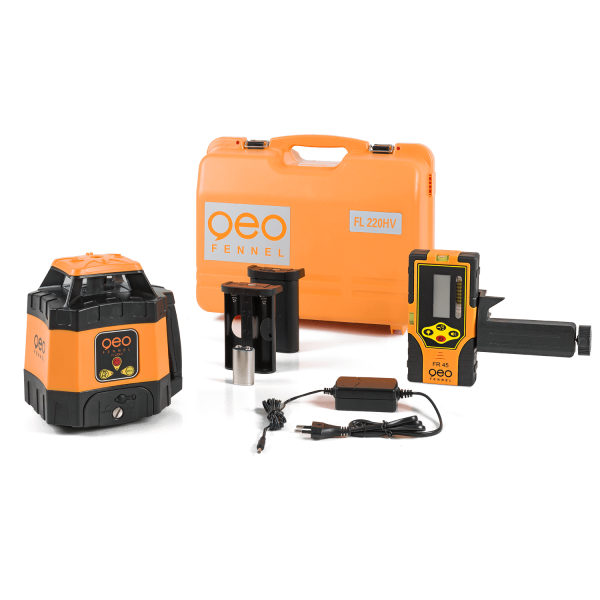

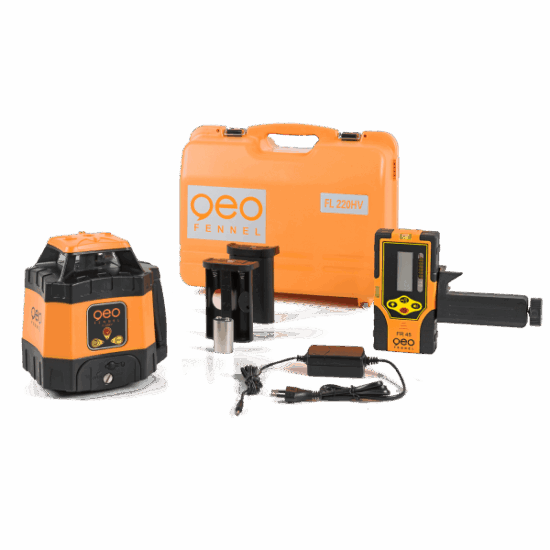

Set: with tripod and staff in container

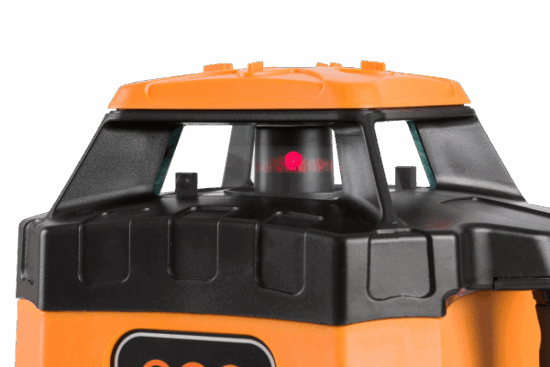

Laser diode: red
Self-levelling: horizontal / vertical
Visible laser beam: red
Self-levelling range: ± 5°
Accuracy horizontal: 1,0 mm / 10 m
Accuracy vertical: 1,5 mm / 10 m
Working range without receiver: Ø 30 m
Working area with FR 45: Ø 400 m
Working area with FR 77-MM: keine Angabe
Grade: keine
Laser class: 2
Rotating speed rpm: 600
Operating time: 20 h
Power supply: NiMH
Dust / water protection: IP 54
Manual mode: yes
90° plumb beam up: yes
Temperature range: -20° to +50°C
TILT-function: yes
