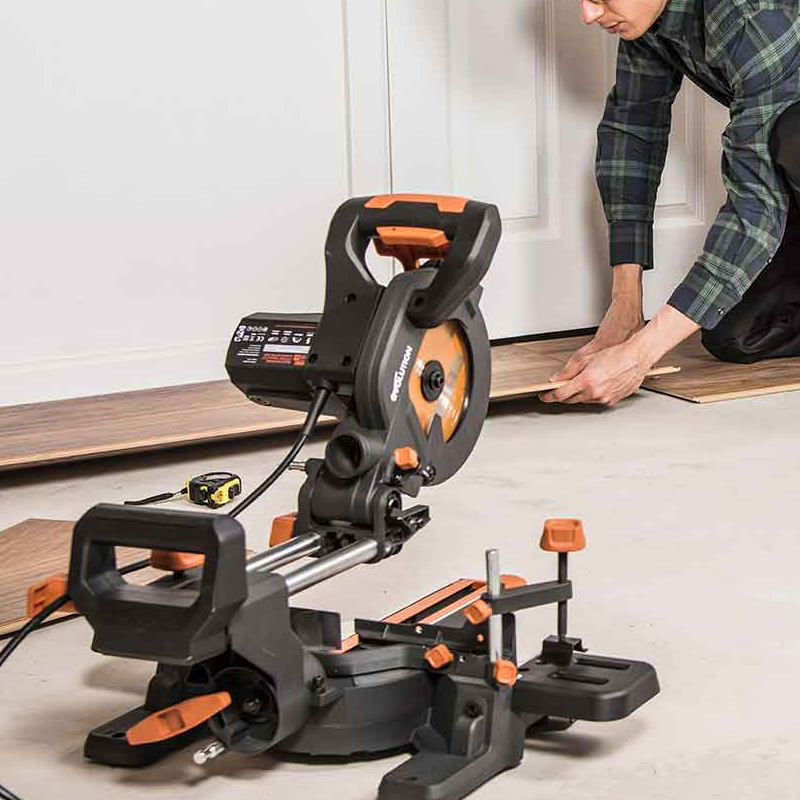

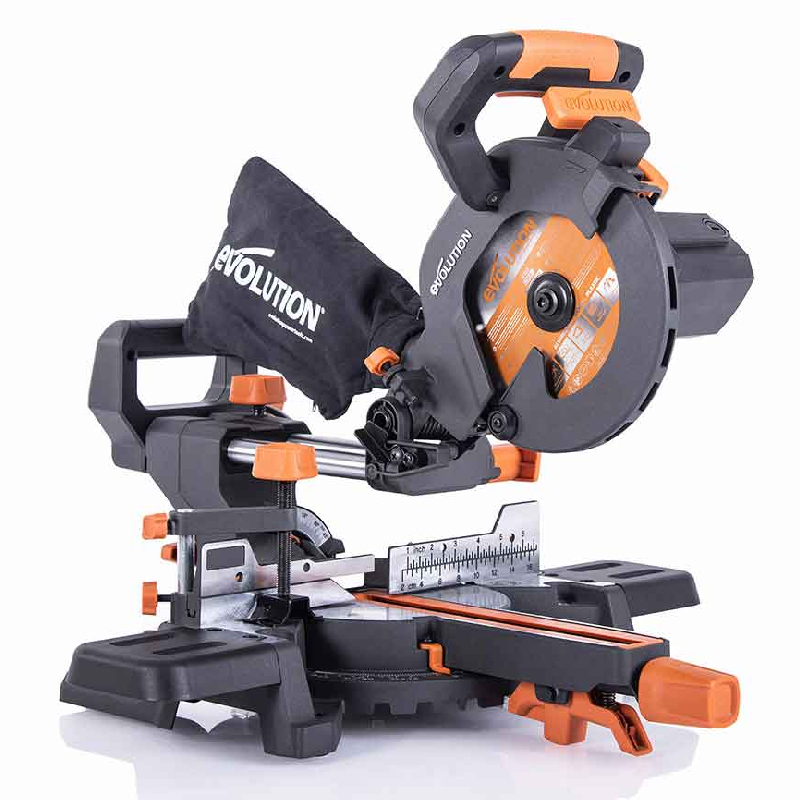

Evolution Evolution R185SMS+ 185mm Sliding Compound Mitre Saw With TCT Multi-Material Cutting Blade, 240v
Product Description
Evolution Evolution R185SMS+ 185mm Sliding Compound Mitre Saw With TCT Multi-Material Cutting Blade, 240v
Multi-Material cutting technology.
Laser guidance, smooth sliding functionality, 0° – 45° bevel tilt and 50˚ – 50˚ miter.
210mm x 55mm max. crosscut capacity.

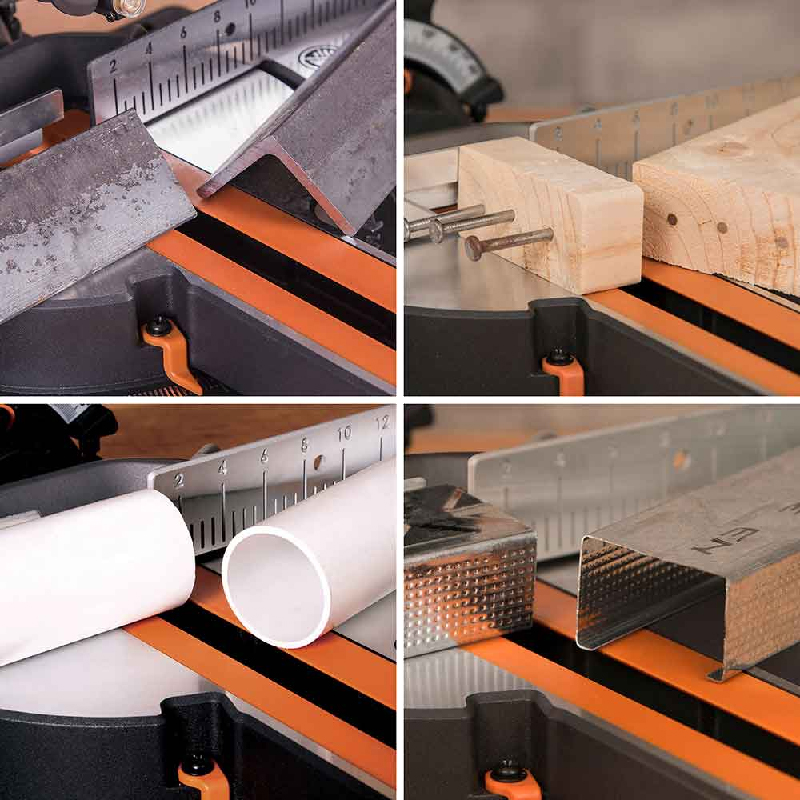

Multi-Material cutting technology. One saw, one blade, cuts all.*
Accurate cutting with laser guidance, smooth sliding functionality, adjustable depth of cut and 9 positive miter stops.
Reliable, smooth square cutting every time in a variety of materials.
Powerful 1200W hi-torque motor with optimised gearbox and blade system.
0° – 45° bevel tilt and 50˚ – 50˚ mitre covers all common cutting angles accurately & easily.
210mm x 55mm max. crosscut capacity.
Ergonomic trigger handle designed for left and right-handed use.
PLUS MODEL FEATURES
Compatible with the Evolution Miter Saw Stand.
Compact, lightweight & robust design, weighing under 8.95 kg
Japanese Tungsten-Carbide-Tipped (TCT) 185mm blade included.
3 Year limited warranty.
Premium Japanese Tungsten-Carbide-Tipped (TCT) 185mm blade included.
3pc clamp included for additional accuracy and faster adjustments.
Motor (110V 50Hz): | 1200W |
Motor (240V 50Hz): | 1200W |
Speed No Load: | 3750 min-1 |
Max. Mitre: | 45° – 45° |
Max. Bevel (Left): | 45° |
Blade Guard: | Cast Aluminium |
Cable Length: | 2m |
Dust Port Diameter: | 35mm |
Blade Dia.: | 210mm |
No. of Teeth: | 20 |
Bore: | 25.4mm |
Kerf: | 1.7mm |
Max. Cross Cut (0° x 0°): | 125mm x 55mm |
Max. Bevel Cut (0° x 45°): | 125mm x 35mm |
Max. Mitre Cut (45° x 0°): | 85mm x 55mm |
Max. Compound Cut (45° x 45°): | 85mm x 35mm |
Mild Steel Plate | 6mm |
(Max. Thickness): | |
Mild Steel Box Section | 4mm |
(Max. Wall Thickness): | |
Product Dimensions: | 260mm x 393mm x 381mm |
Packaging Dimensions: | 420mm x 290mm x 310mm |
Product Weight: | 5.8 kg |
Packaged Weight: | 7.2 kg |
Sound Pressure Level LPA: | 110V: 96.02 dB(A) / 220-240V: 97.14dB(A) |
Sound Power Level LWA: | 110V: 109.02 dB(A) / 220-240V: 110.14dB(A) |
Uncertainty K: | KpA & KWA: K=3 dB(A) |
