Parweld XTT212 P AC/DC Pulsed 200A TIG Inverter Machine C/W Torch

£990.00 (£825.00 ex VAT)

Out of stock

Product Description

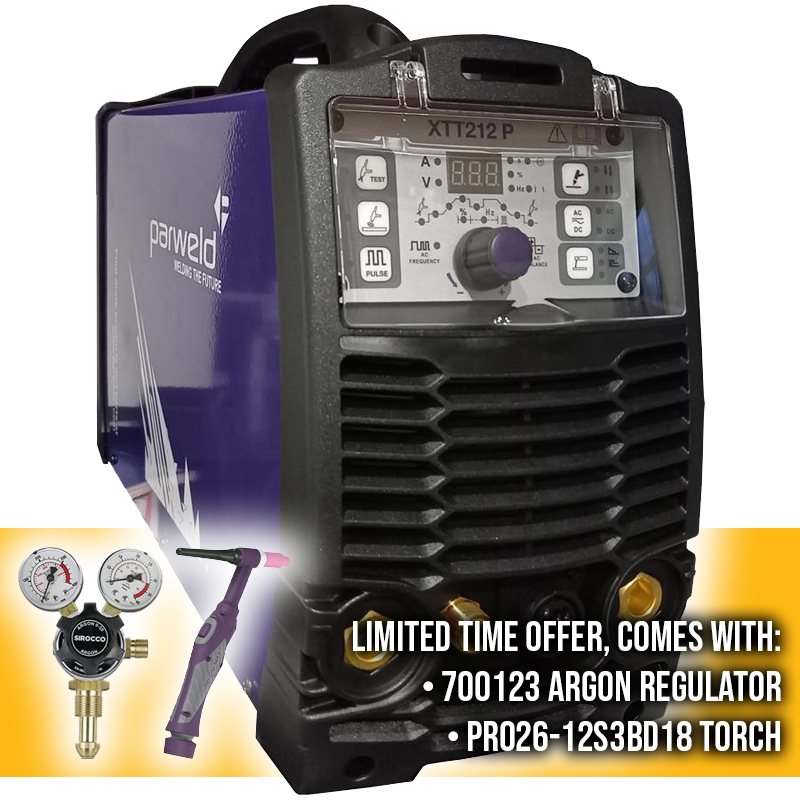

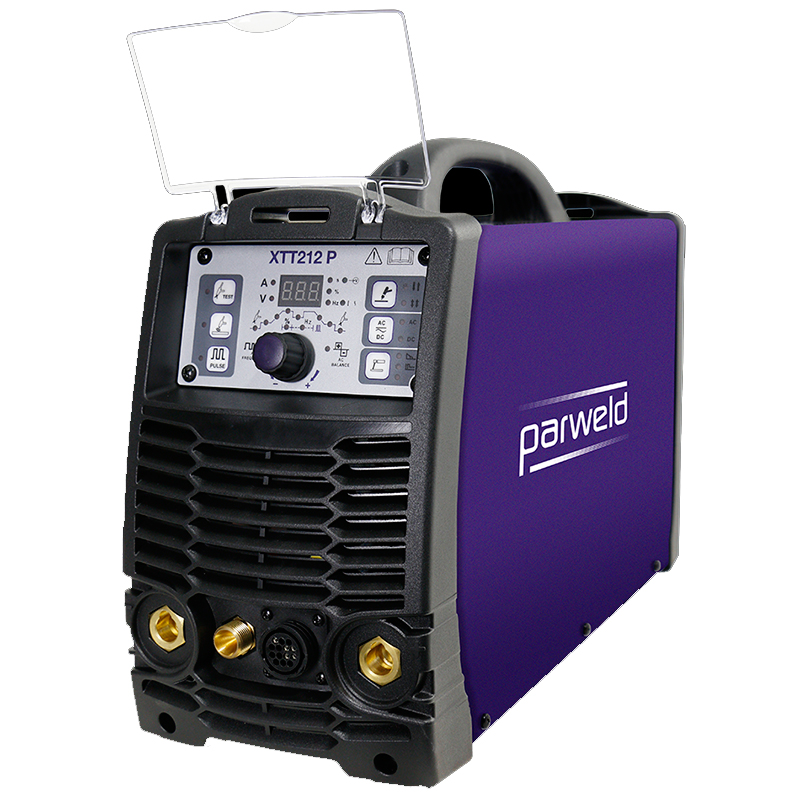

Parweld XTT212 P AC/DC Pulsed 200A TIG Inverter Machine

LIMITED TIME OFFER, COMES WITH:
700123 Argon Regulator
PRO26-12S3BD18 Torch To Suit

This dual voltage compact machine offers the user the benefits of a 230V workshop machine with the flexibility of 110V site machine.
Compared with the XTT202 AC/DC the XTT212 P has a 40% smaller footprint but packs the same punch.
Simple intuitive one knob control allows for rapid program setting. The XTT212 P machine works with digital and analogue on torch current controls and has foot control option.

Key Features Include:

Pulse Function To Superior Arc Control
Square Wave AC TIG
110V or 230V Input
TIG Welds Any Metal Up To 6mm
Reduced Footprint
Variable Frequency for Faster Welding

Weight 12 kg
Dimensions 460 × 170 × 320 mm
Phase Single Phase
Machine Style Compact
Machine Type Inverter
Maximum Current 10-140A AC, 10-200A AC, 5-140A DC, 5-200A DC
Output Current for 230V 5-200A DC, 10-200A AC
Output Current for 110V 5-140A DC, 10-140A AC
Duty Cycle 140A @ 40% Duty Cycle, 200A @ 25% Duty Cycle
Input Voltage 110V 1P, 230V 1P
Input Current (Eff) 17.5A, 21A
Output AC, DC
Pulse Frequency 0.5-200Hz
AC Frequency 50-250Hz
Minimum Fuse Rating 16A, 32A
KVA 3.6
Generator Size (Requires AVC) 5 KVA
Cooling Air, Fan, Forced
Enclosure Protection IP23S
Comes With 3m Earth Cable, 3m Input Cable, Gas Hose
Ideal for Applications Aluminium Fabrication, Light Industrial Manufacturing, Sheet Metal Work, Stainless Steel Fabrication, Training
Special Features Pulse Function to Superior Arc Control, TIG Mode, Variable Frequency for Faster Welding
Warranty 3 Year Service, 3 Year Warranty
Conforms To IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6, RoHS Compliant
